Voltage Regulation StepDown Module 24V to 1V

Mini DC/DC StepDown Module with Wide Working Range.

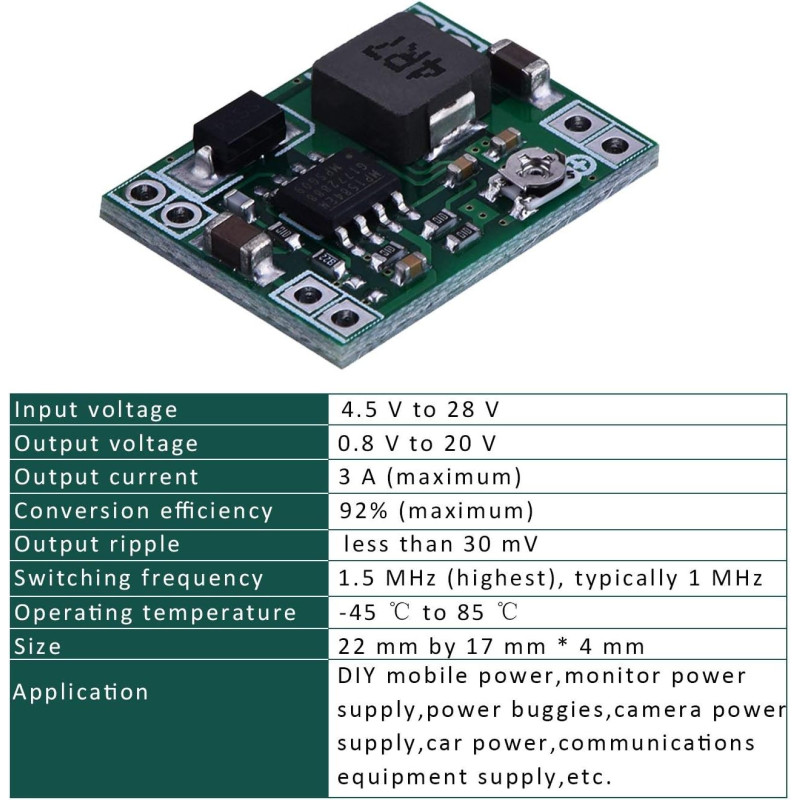

Input Voltage: 4.5~28V; Output Voltage: 0.8V~20V.
Output Current: 3A (Maximum); Conversion Efficiency: 92% (Maximum).
Output Ripple: Less than 30mV; Switching Frequency: 1.5MHz (Maximum), Typically 1MHz.

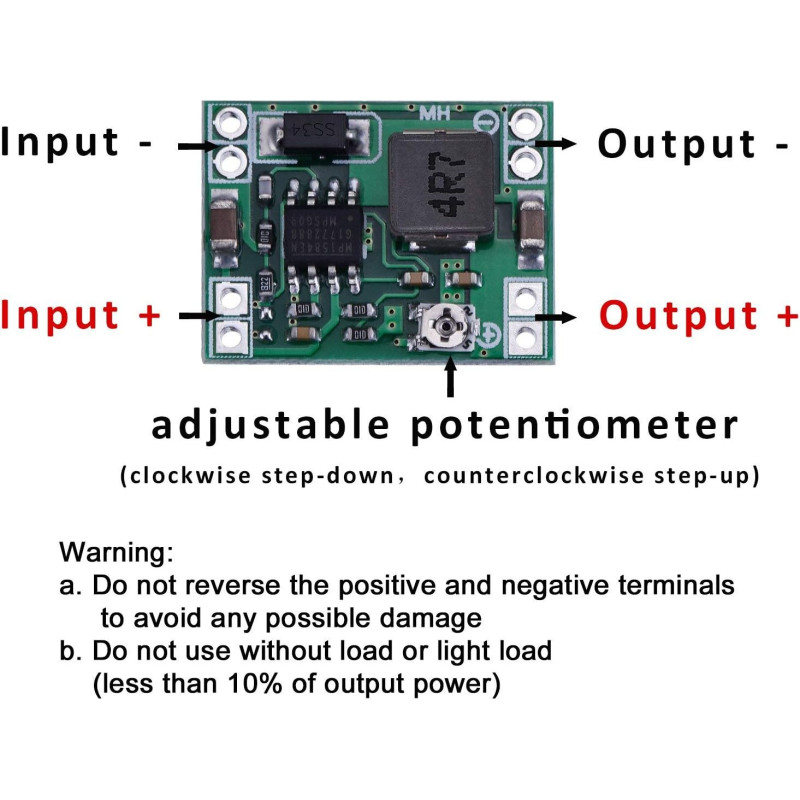

Operating Temperature: -45℃ to 85℃; Size: 22mm by 17mm by 4mm; Caution: Do not reverse the positive and negative pole to avoid possible damage. Do not use light load (less than 10% of output power) or no load.

Features:
- StepDown DC-DC Module.
- Output Current: 3A (max).
- Output Ripple: <30mV.
- Operating Temperature: -45 to +85 degrees.

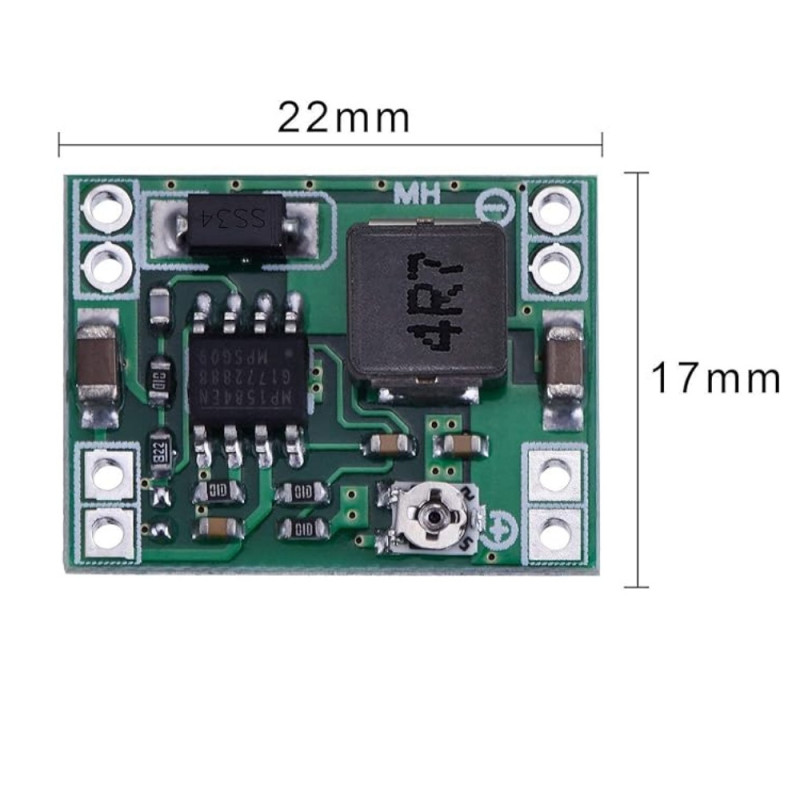

- Dimensions: 22 x 17 x 4 mm
